Zimmermann Brake Disc for PORSCHE 911 (993) front left
Zimmermann Formular Z Brake Disc for PORSCHE 911 (993) front left
Partnumber: 460.1564.70
The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.
Your advantages:
- Excellent deceleration action and no distortion of friction ring at high temperatures
- Substantial weight saving and therefore less unsprung mass
- Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
- "Hot spots" prevented by optimised design of ventilation channels
- 1:1 exchange of original disc possible
- Not subject to registration: general ABE certification supplied with disc
- No conversion required for brake tuning
suitable for:
PORSCHE 911 (993)
Typ: 3.6 Turbo GT2 4
build year: 01.08.1993 - 01.09.1997
KW / HP: 316/430
ccm: 3600
fuel type: Benzin
body: Coupe
Position: front left

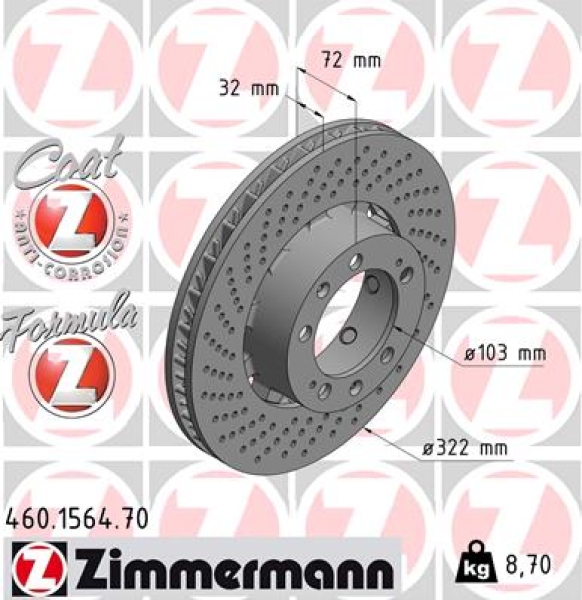

Brake Disc Specification:
brake discs art: belüftet, Gelocht
thickness (mm): 32
height: 72
information 2: Bremsscheibe zweiteilig
outer diameter (mm): 322
hole pitch / number: 9/5
bolt hole circle 1 Ø (mm): 130
min. thickness (mm): 30
hub bore Ø (mm): 103
quality: Alu-Topf schwimmend, Alu hub floating
Certification: eintragungsfrei
OE-Number (for comparison only): 993 351 045 10, 993 351 045 00, 24.0132-0163.2, 92182110, 16518
Price per piece - Brake discs are to be changed in pairs.
