Zimmermann Brake Disc for BMW 3 (E36) front left
Zimmermann Formular Z Brake Disc for BMW 3 (E36) front left
Partnumber: 150.3417.75
The Zimmermann Formula Z brake disc was designed with the aim of teaming simple installation with optimum braking effect under high mechanical and thermal load.
The compound brake disc developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.
Your advantages:
- Excellent deceleration action and no distortion of friction ring at high temperatures
- Substantial weight saving and therefore less unsprung mass
- Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
- "Hot spots" prevented by optimised design of ventilation channels
- 1:1 exchange of original disc possible
- Not subject to registration: general ABE certification supplied with disc
- No conversion required for brake tuning
suitable for:
BMW 3 (E36)
Typ: M3 3.2
build year: 01.09.1990 - 01.02.1998
KW / HP: 236/321
ccm: 3201
fuel type: Benzin
body: Stufenheck
Position: front left

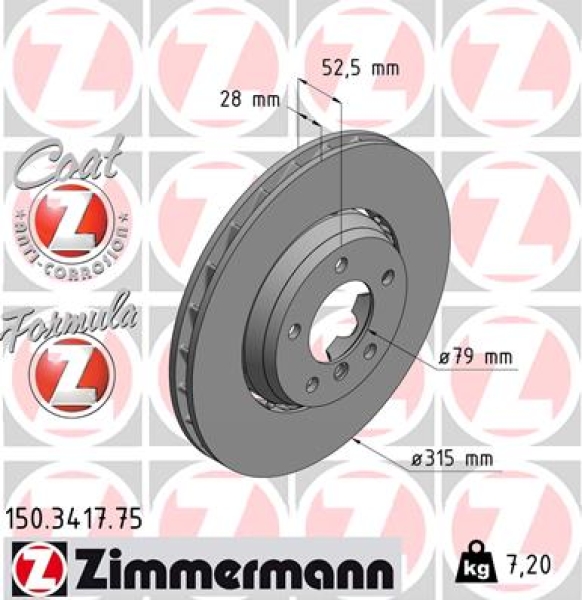

Brake Disc Specification:
brake discs art: belüftet
thickness (mm): 28
height: 52,5
information 2: Bremsscheibe zweiteilig
outer diameter (mm): 315
hole pitch / number: 6/5
bolt hole circle 1 Ø (mm): 120
min. thickness (mm): 26,4
hub bore Ø (mm): 79
quality: Alu-Topf schwimmend, Alu hub floating
Certification: eintragungsfrei
OE-Number (for comparison only): 3411 2 227 737, 24.0128-0204.2, 50431, 92071100, 92071103, 562009J, 562009B, MDC1524, DF2731S, 09.5934.10, 150.3417.00, 150.3417.20, 150.3417.50, 150.3417.52, 150.3417.70, 8120 11142, BG3215, BS 8174, 6508.10, V20-80030, HP57710, 16334, DF879, WD00497, 6027315, 24548, 6508 10, D6508.10, 628.1860
Price per piece - Brake discs are to be changed in pairs.
