Zimmermann Brake Disc for SAAB 9-3 (YS3F) rear
Partnumber: 430.1497.52
Our aim is to supply our customers with high quality products at all times.
As a manufacturer of safety parts we are aware of our responsibilities and give precedence to product quality. All the brake discs and brake drums in our standard range of wearing parts are manufactured in dimensions and to a material quality specified by the automotive manufacturers.
Your advantages: - Extensive product range with over 1,000 different customer references
- Equivalent spare parts as defined by motor vehicle block exemption regulation KFZ-GVO (EU) 330/2010
- Consistently high product quality
- Reliable delivery service guaranteed by keeping adequate levels of stock
- Wide range of Standard Brake Discs with anti-corrosion protection Coat Z
- Ongoing development and expansion of range
- Over 50 years experience in brake disc manufacture
suitable for:
SAAB 9-3 (YS3F)
Typ: 2.0 t
build year: 01.01.2002 - 01.02.2015
KW / HP: 120/163
ccm: 1998
fuel type: Benzin
body: Stufenheck
Position: rear

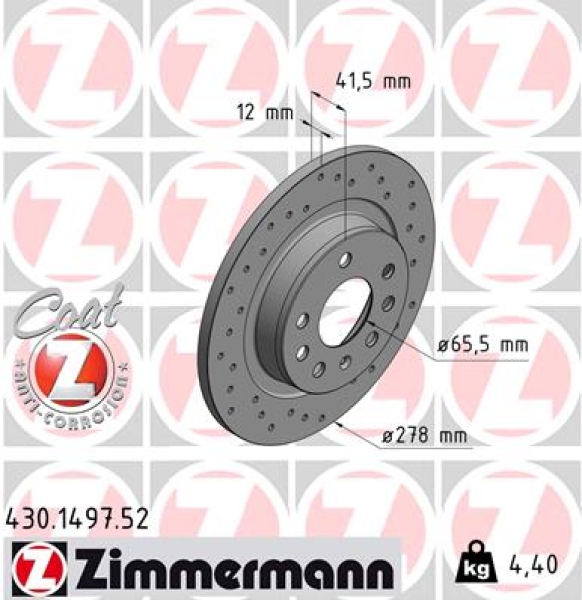

Brake Disc Specification:
brake discs art: Voll, Gelocht
thickness (mm): 12
height: 41,5
outer diameter (mm): 278
hole pitch / number: 8/5
rim size (zoll): 15
bolt hole circle 1 Ø (mm): 110
min. thickness (mm): 10
hub bore Ø (mm): 65,5
appr. stamp: ECE R90 APPROVED
OE-Number (for comparison only): 468 364 89, 517 992 36, 717 725 52, 569 115, 93171848, 9 156 785, 12762290, 9156787, 24.0112-0157.1, 24.0312-0157.1, 54185, 54185PRO, 186854, 0 986 479 106, 29624 01, 92118500, 92118503, 562229J, 562229B, 353613454540, 360406040000, MDC1560, BDC5413, DF29609, 23562, DF4266, 08.9511.10, 08.9511.11, 08.9511.1X, DDF1288, DDF1288C, 430.1497.00, 430.1497.20, 430.1497.50, BS5413, 40 92 3562, 8120 24145, 14.0776, BG3731, 230475, 14853 V, BS 7644, BV 7644, 23-0609, 203646, BS-7914, 25705, 25705/2, 615 523 6025, 615 523 6025/PD, 6688.00, 78BD9115, V40-40032, HP58151, 17369, 17369S, BAR12157, O1014P, DF966, WD00768, 142.034, HPD 034, BD-9115, 9004889J, 880569115ALT, 37-1101, 6042664, 14853, 6688 00, 5772, 1815203646, 206 506, 19-9115, 800-609, D6688.00, 1005690115, 01.17.42.119578, BDR1989.10, FBD1329, 98764, C4X019ABE
Price per piece - Brake discs are to be changed in pairs.
Zimmermann BS OPEL/SAAB/FIAT SPORT Z mit ECE R90
